Distributed Energy Resources (DER)

According to Amory Levins of the Rocky Mountain Institute, all new central thermal power stations are now obsolete and uncompetitive. What will a large number of smaller-distributed power plants mean for the Smart Grid?

Combined Heat and Power (CHP) can be much more efficient than central power generation because the waste heat is put to good use. (Thank you to the California Energy Commission for this animation)

Navigate this Report
Back to Supply Shifting Index
1. Background

2. Acronyms/Definitions
3. Business Case
4. Benefits
5. Risks/Issues
6. Success Factors
7. Next Steps
8. Companies
9. Links

Source: National Energy Technology Laboratory -Modern Grid

1.Background
  • When the United States was being electrified, regulations promoted construction of centralized plants managed by regional utilities. These regulations discouraged decentralized power generation, such as cogeneration. They even went so far as to make it illegal for non-utilities to sell power.
  • By 1978, Congress recognized that efficiency at central power plants had stagnated and sought to encourage improved efficiency with the Public Utility Regulatory Policies Act (PURPA), which encouraged utilities to buy power from other energy producers.
  • Technological improvements in gas turbines have changed the economics of power production. It is no longer necessary to build a 1,000- megawatt generating plant to exploit economies of scale. Combined-cycle gas turbines reach maximum efficiency at 400 megawatts, while aero-derivative gas turbines can be efficient at scales as small as 10 megawatts.
  • Distributed generation can augment or even replace the large central power generators of today’s electricity grid. The portfolio of distributed generation technologies includes microtubines, solar photovoltaics and various types of fuel cells in addition to today’s mainstay diesel engines. These devices put generation closer to the end user, and they are capable of improving power reliability and security for entire communities or individual residences and businesses.
  • Distributed or Community Storage provides capability to quickly ramp up MW capacity of storage and has the ability to provide peak shaving capabilities, deferral, and improving reliability
  • Grid-connected distributed generation and storage increased from 5,423 MW in 2004 to 12,702 MW in 2007. While grid-connected distributed generation increased 134 percent over two years, it still only represented 1.4 percent of grid capacity, 1.6 percent of summer peak and 2.0 percent of winter capacity. DOE growth projections indicate a doubling of distributed generation capacity in five years.

Distributed Smart Grid Control will enable greater penetration of efficient DER


2. Acronyms/Definitions
  1. AB-1613 - California Waste Heat and Carbon Emissions Reduction Act - Designed to encourage the development of new combined heat and power (CHP) systems in California with a generating capacity of not more than 20 megawatts.

    The Act directs the California Public Utilities Commission (CPUC), publicly owned electric utilities, and the California Energy Commission (CEC) to establish policies and procedures for the purchase of electricity from eligible CHP systems. It also directs the Air Resources Board (ARB) to report on the reduction in emissions of greenhouse gases resulting from the increase of new electricity generation from CHP.

    The Act specifically directs the CEC to adopt by January 1, 2010, guidelines establishing technical criteria for eligibility of CHP systems for programs to be developed by the CPUC and publicly owned utilities. The CPUC is also directed to establish (1) a standard tariff for the sale of electricity to electricity corporations for delivery to the electrical grid and (2) a "pay as you save" pilot program requiring electricity corporations to finance the installation of qualifying CHP systems by nonprofit and government entities.

    Under the guidelines, A CHP System shall meet an oxides of nitrogen (NOx) emission standard of 0.07 pounds of NOx per megawatt hour (0.07 lb NOx/MWh) of electrical energy produced, crediting
    mechanical energy produced at the rate of 1 MWh per 1,341 horsepower-hour (hp-hr).

  2. Absorption Chiller - A refrigerator that uses a heat source to provide the energy needed to drive the cooling system. Absorption chillers are a popular alternative to regular compressor refrigerators where surplus heat is available (e.g. combined heat and power (CHP) or industrial processes)
    .
  3. Aggregated Distributed Applications can be “loads as resources” to help with renewable integration. Smart Grid is key to the aggregation of devices.

  4. CHP – Combined Heat and Power Cogeneration - (Also known as Cogeneration) The use of a heat engine or a power station to simultaneously generate both electricity and useful heat. CHP is often co-located at nearby industrial sites. The raw materials and industrial sectors together account for a little more than two-thirds of US capacity, while the commercial and institutional sectors account for a little under one-third. Conventional power plants emit the heat created as a by-product of electricity generation into the environment through cooling towers, flue gas, or by other means. CHP captures the by-product heat for domestic or industrial heating purposes, either very close to the plant, or—especially in Scandinavia and eastern Europe—as hot water for district heating with temperatures ranging from approximately 80 to 130 °C.

    It's more efficient to convert any fuel to heat than to power - such is the nature of the 2nd law of thermodynamics. That's not a gas-specific story, or even really a heat vs. power story. (Try running your computer on heat!) We need heat and we need power. An ideal world would cogenerate them both from a single fuel source. But be careful assuming that any fuel would be "better" used for heat; it's analagous to saying that we'd be better off using our nation's beef processors only to make chuck. Yes, you get higher efficiency, but you end up losing a lot of T-bones, filets and higher-value cuts. Ditto with a preference for heat.   We need electricity - our challenge is simply to make it with as low a fossil-fuel signature as possible.

  5. Combined Cycle - An assembly of heat engines that work in tandem off the same source of heat, converting it into mechanical energy, which in turn usually drives electrical generators. The principle is that the exhaust of one heat engine is used as the heat source for another, thus extracting more useful energy from the heat, increasing the system's overall efficiency. This works because heat engines are only able to use a portion of the energy their fuel generates (usually less than 50%).

    The remaining heat (e.g., hot exhaust fumes) from combustion is generally wasted. Combining two or more thermodynamic cycles results in improved overall efficiency, reducing fuel costs. In stationary power plants, a successful, common combination is the Brayton cycle (in the form of a turbine burning natural gas or synthesis gas from coal) and the Rankine cycle (in the form of a steam power plant).
  6. Distributed Generation Alternatives

  7. DG - Distributed Generation - Connects generation directly to the distribution system. The power provided by this generation ranges from 5 to 500 MVA, and includes wind turbines, solar arrays, solar thermal, small hydroelectric plants, fuel cells, and microturbines.

  8. DER - Distributed Energy Resources - Small-scale energy generation/storage sources capable of providing temporary changes in electricity supply. Expands on DG to include technologies such as battery energy storage, and superconducting magnetic energy storage

  9. Export - Aggregate generation at a Producer’s facility exceeds the aggregate load, and the net power flows to the distribution system. Export can be intended or unintentional.

  10. Fuel Cell (See my blog article Fuel Cells) - Similar to a battery in that an electro-chemical reaction is used to create electric current. The major difference between fuel cells and batteries is that batteries carry a limited supply of fuel internally as an electrolytic solution and solid materials. Fuel cells have similar reactions; however, the reactants are gases (hydrogen and oxygen) that are combined in a catalytic process. Since the gas reactants can be fed into the fuel cell and constantly replenished, the unit will never run down like a battery. Phosphoric-acid fuel cells (PAFC) comprise the largest segment of existing CHP products worldwide and can provide combined efficiencies close to 90% (35-50% electric + remainder as thermal)

  11. HHV - Higher Heating Value - Determined by bringing all the products of combustion back to the original pre-combustion temperature, and in particular condensing any vapor produced. Such measurements often use a temperature of 25°C. The higher heating value takes into account the latent heat of vaporization of water in the combustion products, and is useful in calculating heating values for fuels where condensation of the reaction products is practical (e.g., in a gas-fired boiler used for space heat). In other words, HHV assumes all the water component is in liquid state at the end of combustion (in product of combustion.
  12. IEEE 1547 - Institute of Electrical and Electronics Engineers Standard for Interconnecting Distributed Resources with Electric Power Systems) is a standard of the Institute of Electrical and Electronics Engineers meant to provide a set of criteria and requirements for the interconnection of distributed generation resources into the power grid
    • Developed with low penetration in mind
    • Does not allow some functions needed for high penetration
    • Without communication connectedness (i.e. manageability),utilities don’t want DER to try to do anything “smart” or grid supportive, due to concerns that the behavior will not work as intended, even potentially working against the utility. Existing IEEE1547 rules reflect this do nothing approach
      • Volt/VAR control
      •  Low Voltage Ride Through
  13. IEEE 1547.8 - New Electrical Connectivity Standard for High Penetration of DER - High penetration of DER will require some additional communications requirements. Proposed idea is that these DER communications requirements be based on the “sensitivity” of its
    environment:
    – Size and capabilities of the DER system itself
    – Distribution system configuration and characteristics
    – Location of the DER PCC with respect to the circuit’s configuration
    – Sizes and capabilities of neighboring DER systems
    – Requirements of the transmission system for support from the distribution systems
    – The regulatory and financial environment of the utility, including utility economics, energy infrastructure and legacy systems.
  14. Islanding - Occurs when a DER continuing to power a location even though power from the electric utility is no longer present. Islanding can be dangerous to utility workers, who may not realize that the building is still powered even though there's no power from the grid. For that reason, distributed generators must detect islanding and immediately stop producing power.

  15. Least-Cost, Best Fit. - California Public Utilities Code Section 399.14 requires a renewable project selection process called “least-cost, best-fit,” which allows the utility to select the project based on the value to the ratepayer and the utility. The statute requires the California PUC to consider estimates of indirect costs associated with the project, including new transmission investments and ongoing utility expenses resulting from integrating and operating renewable energy resources.

  16. Microturbines - Small combustion turbines. They range from hand held units producing less than a kilowatt, to commercial sized systems that produce tens or hundreds of kilowatts. Advances in electronics allow unattended operation and interfacing with the commercial power grid. Electronic power switching technology eliminates the need for the generator to be synchronized with the power grid. This allows the generator to be integrated with the turbine shaft, and to double as the starter motor. Microturbine systems have many advantages over reciprocating engine generators, such as higher power density, extremely low emissions and few moving parts. In addition, the majority of their waste heat contained in their relatively high temperature exhaust, whereas the waste heat of reciprocating engines is split between its exhaust and cooling system. Typical microturbine efficiencies are 25 to 35%. When in a combined heat and power cogeneration system, efficiencies of greater than 80% are commonly achieved.

  17. Micro-CHP - Micro Combined Heat and Power - An extension of cogeneration to the single/multi family home or small office building. The installation is usually less than 5 kW in a house or small business. Instead of burning fuel to merely heat space or water, some of the energy is converted to electricity in addition to heat. This electricity can be used within the home or business or, if permitted by the grid management, sold back into the electric power grid. As Natural Gas prices rise, it becomes economically infeasible to simply burn such a high-quality fuel directly in a hot water heating appliance when a properly sized micro-CHP unit could do the same job while converting 25 or 30% additional fuel into electricity at near 100% efficiency.

  18. Net Metering - Generating more electricity than needed and selling the surplus to the grid.

  19. NOx - Nitrogen Oxides - Pollution control of CHP facilities is an issue even though they contributed to GHG reduction. Produced during combustion, especially at high temperature. In the troposphere, during daylight, NO reacts with partly oxidized organic species to form NO2, which is then photolyzed by sunlight to reform NO:NO + CH3O2 → NO2 + CH3ONO2 + sunlight → NO + O

    The oxygen atom formed in the second reaction then goes on to form ozone; this series of reactions is the main source of tropospheric ozone (smog). CH3O2 is just one example of many partly oxidized organic molecules that can react with NO to form NO2. These reactions are rather fast so NO and NO2 cycle, but the sum of their concentration ([NO] + [NO2]) tends to remain fairly constant. Because of this cycling, it is convenient to think of the two chemicals as a group; hence the term NOx.

    In addition to acting as a main precursor for tropospheric ozone , NOx is also harmful to human health in its own right.

  20. Peak Shaving - Using on-site generation intermittently to avoid purchasing grid electricity during expensive peak-rates. Peak shaving also refers to using on-site generation during periods of maximum electricity consumption expressly for lowering the energy demand component of a given billing period (applies only for demand plus usage rate structures).

  21. Penetration - Percent of load on circuit, of circuit breaker, or of line section

  22. PURPA - Public Utility Regulatory Policies Act of 1978 - Passed at a time when the nation was focused on what appeared to be a steady stream of oil price increases and a great deal of concern about energy imports from politically unstable countries. PURPA was ground-breaking because, for the first time, it required that utilities buy power from companies that were not utilities. PURPA created a new industry of nonutility power generators. It was important to transmission policy because it required that the nonutility generators be given access to the transmission system in order to deliver their power onto the grid.

  23. QF - Qualifying Facilities - Established under PURPA. QFs include CHP plants and small power producers. CHP plants produce process heat (e.g., steam) for primary business activity other than electricity production. The surplus heat is used to generate electricity for sale to utilities. Small power producers are entities that use renewable resources to generate electricity and which are not larger than 80 MW.

  24. Rule 21 – Describes the interconnection, operating and metering requirements for generation facilities to be connected to a utility’s distribution system, over which the California Public Utilities Commission (CPUC) has jurisdiction. The 15% line section peak load screen is meant as a catchall for a variety of potential problems that can occur as the level of penetration of generation within the distribution system increases. Rule 21 refers to the rules of the utility, and not the rules of the CPUC. Rule 21 tariffs for each of California’s large investor owned utilities (IOUs) are available on each IOU’s website:

  25. SB-412 -- A 2009 California law that gives the CPUC authority to determine eligible technologies for SGIP based on greenhouse gas (GHG) emissions pursuant to AB 32 (Pavley, 2006), the California Global Warming Solutions Act of 2006. As previously implemented, the SGIP program missed opportunities to support clean distributed energy technologies that reduce greenhouse gas emissions, such as:
    1. Biogas-fueled combined heat and power (CHP) generation
    2. Natural gas-fueled CHP generation in certain GHG reducing applications
    3. Certain gas-displacing solar thermal technologies such as solar heating and cooling which are not included in the California Solar Initiative (CSI) because they displace gas not electricity
    4. Complementary peak load reduction technologies such as energy storage

  26. SGIP -- Self Generation Incentive Program - A California program established to reduce peak load and incentivize new and emerging technologies (Public Utilities Code 379.6) Provides incentives to support existing, new, and emerging distributed energy resources. The SGIP provides rebates for qualifying distributed energy systems installed on the customer's side of the utility meter. Qualifying technologies include wind turbines, fuel cells, and corresponding energy storage systems.

  27. Standby Power - Using a generator as a backup electricity source to ensure power availability during grid outages. When using DG as a backup power supply, IEEE 1547 requires that the generator be disconnected from the grid in order to prevent an unintentional Island. During a power outage, the transfer switch ensures that there is no back-feed of electricity from the DER device into the utility's electric distribution system. Back-feeding creates a potentially dangerous situation for utility line workers and may also damage equipment.

  28. Stirling Engine – A heat engine that converts thermal energy into mechanical energy. The engine is like a steam engine in that all of the engine's heat flows directly through the engine wall. This is traditionally known as an external combustion engine. Unlike the steam engine's use of water as the working fluid, the Stirling engine encloses a fixed quantity of gas such as air or helium. As in all heat engines, the general cycle consists of compressing cool gas, heating the gas, expanding the hot gas, and finally cooling the gas before repeating the cycle. It is noted for its high efficiency, quiet operation, and the ease with which it can utilize almost any heat source. This engine is currently exciting interest as the core component of Micro CHP units, in which it is more efficient and safer than a comparable steam engine.

  29. Trigeneration (Or more generally poly-generation) - A plant producing electricity, heat and cold. Byproduct heat at moderate temperatures (212-356°F/100-180°C) can be used in absorption chillers for cooling.

  30. VVP - Virtual Power Plant - The concept that intelligent aggregation and optimization of DER can provide the same essential services as a traditional 24/7 centralized power plant. A cluster of distributed generation installations (such as microCHP, wind-turbines, small hydro, back-up gensets etc.) which are collectively run by a central control entity. The concerted operational mode delivers extra benefits such as to the ability to deliver peak load electricity or load-following power at short notice.

    VPPs rely upon software systems to remotely and automatically dispatch and optimize generation or demand-side or storage resources in a single, secure web-connected system. In the U.S., VPPs not only deal with the supply side, but also help manage demand and ensure reliability of grid functions through demand response (DR) and other load shifting approaches, in real time.

    VPPs can be viewed as a manifestation of transactive energy, whereby new technologies such as demand response (DR), solar PV systems, advanced batteries, and EVs are transforming formerly passive consumers into active prosumers. The primary goal of a VPP is to achieve the greatest possible profit for asset owners while maintaining the proper balance of the electricity grid—at the lowest possible economic and environmental cost. Without any large-scale fundamental infrastructure upgrades, VPPs can stretch supplies from existing generators and utility demand reduction programs (and other forms of DER). According to Navigant Research, global VPP implementation spending (excluding energy storage) is expected to reach $2.1 billion annually by 2025.

Source: Xanthus Consulting Presentation for the June 22, 2011, CEC Committee Workshop on Distribution Infrastructure Challenges and Smart Grid Solutions to Advance 12,000 Megawatts of Distributed Generation - "Inverter-based DER Generator and Storage Functions Information Models using IEC 61850"

3. Business Case
  • Generating power on-site, rather than centrally, eliminates the cost, complexity, interdependencies, and inefficiencies associated with energy transmission and distribution. Distributed energy is evolving in a manner like distributed PC and laptop computing, cars for transportation, and smart phones. As distributed Internet data and telephony have found a place in the market, so also will distributed energy generation become widespread. Distributed power shifts energy generation control to the consumer much to the consternation of the existing utility companies.

  • Integrating Distributed Energy Resources into the grid requires instantaneous communications among all critical devices to allow continuous monitoring, control, and correction. A Smart Grid is a key enabler in integrating distributed generation Managing DER’s may be the Internet history’s killer lesson for energy.

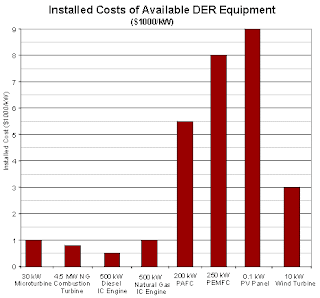

DER Options and Market Applications
Source: National Energy Laboratory - Modern Grid Systems View: Appendix 5

  • Quicker Return on Investment - Smaller-scale, distributed generation projects in the range of two to 20 megawatts are on the rise compared to utility-scale projects because they are faster to approve, have high profitability, have shorter connection and permitting reviews, and have increased flexibility. Panelists at the third Solar Electric Utility Conference escribed an average time for project completion in the range of six to 12 months for smaller projects, compared with two to four years for large utility-scale efforts.
  • Avoided Transmission Expense - In many locations and in certain circumstances, distributed solar projects are less expensive than utility-scale solar projects because of the avoidance of both new transmission lines and line losses -- the latter of which typically accounts for approximately 7% of the power shipped over transmission systems. The costs associated with utility-scale solar projects are often not included in the side-by-side economic comparison made between the two forms of solar power development.
  • Avoided Distribution Expense - An additional benefit of distributed solar is its ability, when developed in clusters (i.e., local micro-grids), to alleviate the need to upgrade distribution substations and add local peaking plant capacity.
  • Economic Development: Could create more jobs than the other cases since rooftop PV is labor intensive.
  • Local Environmental Quality: Performs well since case minimizes transmission and maximizes rooftop installations. It can also improve local air quality by displacing instate local fossil generation.
  • Managed Renewable Variability - The North American Electric Reliability Corporation (NERC) estimates that an additional 145,000 MW of wind generation will be added to the grid over the next 10 years. Distributed smart grid technologies, particularly DERs and dispatchable demand resources, have the potential to provide the needed flexibility to manage the resultant increase in supply variability.
  • Peak Shaving- DER systems can be applied for a limited number of hours per year to shave the peak power demand. With commercial Time of Use (TOU ) and Critical Peak Pricing (CPP) from most utilities, customers can often save a large part of their energy bill by controlling their peak demand. Customers with high daily peaks or poor load factors, such as office buildings and retail stores with nightly shut-downs, can benefit the most.
  • Absorption Chilling - For commercial markets such as food service, retail, office buildings, grocery stores, administrative buildings, and other low thermal/high cooling markets, the addition of thermally activated cooling can often provide enough cooling load to make a combined cooling heating and power system economically viable. The figure below shows the increase in thermal load that is achieved by converting the air conditioning load from electricity driven to thermally driven (jpg)
  • Resource Recovery - DER can promote the economic use of waste fuels. DER markets for resource recovery include:

    • Landfills
    • Sewage Treatment Plants
    • Municipal Solid Waste
    • Animal Feedlots
    • Other Agricultural Wastes
    • Oil and Gas production and transportation
    • Black liquor recovery and use of wood waste at pulp and paper mills.

  • Generating Efficiency - Thermal power plants and heat engines in general, do not convert all of their thermal energy into electricity. In most heat engines, a bit more than half is lost as excess heat due to the Second law of thermodynamics and Carnot's theorem. By capturing the excess heat, CHP uses heat that would be wasted in a conventional power plant, potentially reaching an efficiency of up to 89%, compared with 55% for the best conventional plants.
  • Locality - CHP is most efficient when the heat can be used on site or very close to it. Overall efficiency is reduced when the heat must be transported over longer distances. This requires heavily insulated pipes, which are expensive and inefficient. Having generation closer to load also lowers transmission losses.
  • Reliability - More available power generation during peak periods. Increases feeder reliability, especially for remote power applications. DER’s may be used to support electricity demand or supply management opportunities for reliability or economic reasons.
    1. Reduces dependency on the transmission system by strengthening the distribution system.
    2. Increases operational flexibility during routine, emergency and restoration activities.
    3. Improves power quality during times of system stress (i.e., peak load, storms, etc.) and reduces system restoration time following major events.
    4. Reduces transmission losses and congestion by locating generation closer to loads.
    5. Increases “ride-through” capability and momentary voltage support.
    6. Reduces the chances for a common mode failure to affect overall
      operation of the entire grid.

  • Security - The ability of the modern grid to accommodate a wide variety of options can reduce its vulnerability to security attacks and improve its security during major events.
    1. Decentralization to the distribution level reduces the grid’s vulnerability to a single attack.
    2. Large quantities of smaller DER, coupled with smaller quantities of large centralized generation, reduce the impact of a unit’s failure on overall grid operation.
    3. Diversity in DER gives operators more choices in response to a security emergency.
    4. Diversity in a geographic location provides alternate means to restore the grid following a major event.
    5. Diversity of fuels at central generating stations (coal, oil, gas, nuclear, hydro) coupled with diversity of fuels at decentralized DER (wind, solar, gas, hydrogen for fuel cells, etc.) increases the probability that adequate fuel supplies will be available.

  • Power Quality of circuits can be improved by DER installations. Some commercial and industrial facilities need higher power quality as a result of increased use of microelectronic devices
  • Reduced Emissions - Reduced damages from greenhouse gas emissions due to lower electricity consumption, lower T&D losses, and generation from clean energy generation substituting for power from less clean sources. DER supports alternative renewable resources such as solar and wind
  • Defer Capital Investments in T&D - Installing DER at or near the end user can also in some cases benefit the electric utility by avoiding or reducing the cost of transmission and distribution system upgrades.
  • Energy Independence for consumers. For the consumer the potential lower cost, higher service reliability, high power quality, increased energy efficiency, and energy independence are all reasons for interest in DER
  • Reduced Water Use - Another challenging issue for utility-scale solar projects is the use of water. Combined, the Genesis and Mojave projects would use 1.24 billion gallons of water per year due to the wet cooling systems involved. ;One alternative to wet cooling systems, dry cooling, uses 90% less water, but can only handle the full cooling load up to temperatures of 85˚-90˚F. As a result, dry cooling in deserts is not cost efficient.


5. Risks/Issues
  1. Cost Impact - According to a June 2009 study by the California PUC, a high DG scenario would entail a 14.6% cost premium compared to the 20% RPS Reference Case. This cost is substantially higher than the 33% RPS Reference Case and alternative 33% RPS cases since this case relies on distributed generation, primarily solar PV, to fill the 33% RPS resource needs. However, under the Solar PV Cost Reduction sensitivity, the total costs of the High DG Case are very similar to the costs of the 33% RPS Reference Case. The solar PV industry is predicting dramatic cost reductions in the coming years even though solar PV is currently the most expensive renewable technology studied in this report.

  2. Lack of Interconnection Standards - In the United States, common standards for interconnecting DER devices into the utility system do not presently exist. Grid interface and interconnection rules are complex. The lack of common standards is a barrier to the wide acceptance and installation of DER technologies.

    In February 2008, the EPA did a study of the 50 states and the District of Columbia, assessing their standards for interconnection. The EPA’s study based its criteria for favorability on whether or not standard forms were in place, time frames for application approval, insurance requirements, distributed resource sizes allowable, and interconnection study fees. With these factors considered, only 15 states were classified as having “favorable” interconnection standards, with 27 states either being “favorable” or “neutral.” The fact that there are five states with unfavorable policies towards distributed generation is also cause for concern, although it is worth noting that that these states are all in the southeast region of the United States perhaps indicating a regional issue.

  3. Interconnection Bureaucracy - Interconnection with California IOU's can take two years or more.

    In May 2012, The California Independent System Operator Corporation (ISO) Board of Governors voted to streamline the process for interconnecting distributed generation. The ISO will annually publish information showing quantities of potential distributed generation at various grid locations. The assessment will be used by load-serving entities, resource developers and local regulatory authorities in negotiating renewable energy contracts and developing projects.

    The new approach will align ISO policy with the state's goal to accelerate distributed generation -- smaller scale resources connected to utility distribution systems and located close to customers. The benefit of the new interconnection process is that distributed generation will obtain deliverability status in about half the time as the current process. Achieving "deliverability" qualifies projects as eligible for being counted toward the resource adequacy requirements of utilities and other load serving entities. Currently, it can take about two years to obtain deliverability status at the wholesale level because of the in-depth engineering analysis and customer consultation performed as part of the interconnection process.

    The Board approval will enable CalISO to file tariff changes with the Federal Energy Regulatory Commission (FERC) so that the streamlined process can be integrated into the its 2012/2013 transmission planning cycle. With a timely FERC approval, CalISO will perform the first distributed generation deliverability assessment in November, publish the first results in February 2013, and conduct the first allocation of available deliverability shortly afterward.

  4. DG Developers Pay All Upgrade Costs - Developers are responsible for 100 percent of the cost of distribution grid upgrades when they interconnect projects to the distribution grid. This is different from how it works on the transmission grid. On the transmission grid the ratepayer is going to pay 100 percent of the upgrade cost of the transmission grid. And they’re going to pay zero percent of the upgrade cost for the distribution grid. It’s just the way FERC has ruled on these things. So the ratepayer is getting a free upgrade to the distribution grid when developers are interconnecting to the distribution grid and paying for network upgrades.

  5. Transparency of Interconnection Costs - Bbefore you start that process of getting site controls, which could cost hundreds o thousands of dollars, you need to know whether that location has any kind of potential to become a viable project. In order to have transparency you need to know things like what’s the capacity. What’s the capacity of the substation that this location is connected to? What about the actual circuit and the line segments? What are the back feed potentials and the cross feed possibilities at that point? Keeping minimum loads of all of the items above and the size of the location in the queue.

    Not only do you have to have a snapshot of what it is today but you have to have a snapshot of everybody that’s ahead of you that’s going to be interconnecting wholesale DG projects anywhere near you on that circuit or that substation. You have to be aware of that because that’s going to impact the experience you’re going to actually have at the end of the day when you finally get it built. You need to be able to predict what those upgrade requirements are going to be and determine what the costs are going to be.

  6. Locational Benefits Not Included in DG Rates - In California, Market price reference (MPR) is the standard for what you’re allowed to sell renewable energy to the utilities. The market price reference is determined at the point of interconnection based on a 500 megawatts gas combined cycled power plant. This means that that interconnection reference point is a out in the middle of nowhere interconnected to the transmission grid. When the locational benefits of interconnecting your energy to the distribution grid instead of the transmission grid are normalized, you get a 25 percent value add for the energy interconnected to the distribution grid. First of all you’re not paying transmission access charges which are at least 1.5 cent per kilowatt hour,the standard rate that has to get paid. For every kilowatt hour that drops down from transmission to distribution it’s 1.5 cents, that’s about 15 percent of the baseline market price. Then there’s a line loss and a congestion loss for every kilowatt hour that comes off the transmission. And on average that’s about a 10 percent line loss, line slash congestion loss. So there’s a 25 percent value boost to wholesale distributed generation in California that is not valued, that’s not compensated in the market price reference.

  7. Markets - Limited export opportunities for excess power|

  8. Limited PURPA Enforcement
    • PURPA undermined by EPAct 2005
    • No state CHP policy to complement PURPA
    • No real “market” alternatives to utility purchases for CHP products
    • No “carrot” or “stick” to encourage utility purchases

  9. Utility Departing Load Fees - Added to customer capital costs ($9.17 -$21.38/MWh)

  10. Air Quality - Air Quality Management District (AQMD) restriction

  11. Visibility of Distributed Capacity - If the homeowner puts in rooftop photovoltaic and applies for a connection, the utility knows about that first installation. Need better Feeder Load Profiling. Although DER units are now all expected to turn off or disconnect during a power system outage, those actions need to be verified for every DER unit to ensure that both utility field crews and the public are safe from presumably “dead” circuits that are actually still “live”. Managing the uncertainties of large numbers of smaller customer-owned DER units will require more sophisticated assessments before outages or power restorations can be scheduled. Planned outages or even work on “live” circuits needs to be coordinated with DER operations to ensure they are able to manage the situation.

  12. Voltage Optimization - Distributed Generation makes voltage control control, and hence voltage optimization increasingly complicated and expensive. These locations are where distributed generation is being deployed. Distributed generation, when connected to the circuit, raises the voltage at the point of integration. So the utility, or the automated voltage control system, must adjust the voltage settings whenever the DG is operating. If that DG happens to be a photovoltaic system, the voltage adjustments might have to be made every few hours or even minutes as clouds roll by. The electro-mechanical control devices were not designed for high frequency useage, leading to early failures. Add additional DGs along the circuit, and the voltage profile is no longer "linear," but instead takes on a rather irregular shape, further complicating the proces and the system infrastructure design. Now add a few electric vehicle chargers on the circuit, which each will lower voltage at the point of use, and the situation becomes even more complicated and dynamic. Just manitaining proper voltage levels, let alone optimization, becomes increasingly challenging. Eventually power electronic control proobably will be required at mutiple points along the distribution circuit. These controls might be added by the utility specifically for that purpose, or they might incorporated into the power electronics of the PV and electric vehicle interfaces, thus serving double duty. There are pros and cons to either approach, but either adds cost.

  13. Microgrids may need to be established before maintenance activities commence to avoid loss of power to customers.

  14. Control - The ability to dispatch renewables is key to market participation

  15. Inadvertent Export - The unscheduled and uncompensated export of real power from a Generating Facility for a duration exceeding two seconds.

  16. Islanding - Although DER units are now all expected to turn off or disconnect during a power system outage, those actions need to be verified for every DER unit to ensure that both utility field crews and the public are safe from presumably “dead” circuits that are actually still “live”. Planned outages or even work on “live” circuits needs to be coordinated with DER operations to ensure DEF will not energize the line during maintenance. Managing the uncertainties of large numbers of smaller customer-owned DER units will require more sophisticated assessments before outages or power restorations can be scheduled. A DER needs an automatic means to prevent it from energizing a de-energized circuit and to prevent reconnect unless the service voltage and frequency is of specified settings and is stable for at least 60 seconds

  17. Voltage Regulation - See my blog article Voltage Regulation- Reverse flow from DER’s is a concern when the magnitude of the current at some point approaches a percentage of the line section peak and where the corresponding voltage drop becomes significant. At low levels of penetration and high load conditions, exporting DER’s, even under reverse current flow, should not be detrimental.

  18. Equipment Rating - At very high penetration levels, the aggregate export capacity of exporting DER’s may exceed the Distribution System’s normal or emergency equipment rating. Equipment of concern includes circuit breakers, fuses, service restorers, sectionalizers, voltage regulators, overhead conductors, underground cable, and transformers.

  19. SCCR - Short Circuit Current Rating - The equipment ratings may need to be verified to ensure that the additional short circuit duty contributed by the DER will not exceed the ratings of existing equipment on the distribution network. Application of a breaker in a circuit with a prospective short-circuit current higher than the breaker's interrupting capacity rating may result in failure.

  20. Costs - High capital costs are presently the norm for many DER technologies and serve as a deterrent to their widespread implementation. However, as production levels and sales increase, it is expected that economies of scale will result in decreased equipment costs. Equipment costs for DER technologies are often quoted in terms of their cost per kilowatt of electricity produced, or $/kW. For example, a 50 kW micro-turbine may cost $1000/kW, or $50,000.

  21. Fault Detection- The DER may not provide sustained fault current for EC Distribution System faults

  22. Residential Sized DER Less Established - Residential customers can implement DER systems in many of the same applications as have been discussed for larger markets such as standby power, peak shaving, combined heat and power, energy savings and sell back to the grid. However, technologies in the 3 to 30 kW size utilized are less established than DER in larger sizes

  23. Economic Distorting Subsidies - The potential for another round of the PURPA problem (i.e., a lot of non-traditional power generation that is built as a result of temporary tax credits or other incentives; drives up power prices; then the capacity is abandoned when the tax benefits and incentives expire - the large number of broken and idle wind generators around Palm Springs, California is a monument to this problem).

  24. CHP Tuning - An exact match between the heat and electricity needs rarely exists. A CHP plant can either meet the need for heat (heat driven operation) or be run as a power plant with some use of its waste heat.

  25. Power Quality of circuits can be affected by DER installations – both for the better or for the worse. Maintenance or loss of DER units may affect distribution system operations if significant load was expected to be supported by the DER units – financial contracts not withstanding.

  26. Distribution System Behavior is not well understood. We need to further study how various distribution systems interact when DER of many types and designs are broadly deployed (particularly their behavior during upset conditions).

  27. Consumers are not motivated to invest. Getting varied generation options depends on motivating marketers and residential, commercial and industrial consumers to invest in DER. Until this occurs, DER investment will primarily be funded by the electric industry, limiting its deployment.

  28. Conflicting agendas exist among stakeholders. For example, deployment of DER by consumers negatively affects utility revenues. Societal benefits desired by government are normally not considered in the business plans of marketers and utilities. As a result, some projects are not being funded. They are often the very projects most important for achieving the modern grid.

6. Success Factors
  • Smart Distribution - All new and upgraded distribution substations should be smart grid compatible, and utilities should be required to conduct cost/benefit analysis if
    proposing not to incorporate smart grid features, like 100% bidirectional capability, in all upgrades/new builds. This is required utility practice to avoid distribution substations creating an artificial bottleneck to DG renewable energy development
  • Simplified Interconnection – Streamlined complicated regulations and the processes involving interconnection, standardization, certification, environmental review, and permits.
  • Improved Communication Technology - Technologies need to be developed to facilitate the expanded use and reduce the cost of DER, including interconnection, control, communication, and other system DER hardware.
  • Smart Sensors and Controls - Integrating DER into the system requires advances in the research and commercialization of smart sensors, protective relays and control devices. Lower cost sensors and controls will reduce DER installation costs, ensure stable operation of interconnected DER units and safeguard line crews and the public during maintenance and restoration.
  • Reformed Distribution Grid Interconnection Procedures - Both FERC and State PUC's need to hold the utilities responsible for making sure that they are doing their interconnections on a timely and effective and transparent process. We need to have audits because right now the utilities are in charge of the interconnection processes. You have to go to the utility to get your contract and you have to go to the utility to do your interconnection. And there’s nobody auditing them on the interconnection.
  • Evaluation of Grid Impacts - The limits of penetration for wide-scale grid-connected DER interact with one another when connected to common distribution feeders of different designs, both radial and networked, and their effect on the dispatchability of resources and the integrity of the distribution and transmission system need to be determined.
  • Applied New Technology- Including micro-grids, DER aggregation, and advanced control systems that enable safe, reliable and cost-effective integration of DER into the distribution system
  • New Operating Models and Algorithms to address the transient and steady-state behavior of the modern grid, and the integration of large amounts of DER.
  • Improved Operator Visualization Techniques and New Training Methodologies to enable system operators (both distribution and transmission) to work together to manage systems in both routine and emergency operations.
  • Advanced Simulation Tools that can provide a more complete understanding of grid behavior, especially where a large number of diverse DER units are deployed. These tools are also needed to assist system planners in designing reliable power systems in this new environment.
  • Market Integration- To maximize the benefits and minimize the costs of DER for end users, access to existing markets needs to be improved or new market structures need to be developed.
  • Real Time Pricing - Will tell suppliers, marketers, DER vendors and consumers when it makes sense to buy more DER. That investment will in turn spur the development of next-generation DER devices, making them even more cost effective.
  • Performance Standards - We must ensure that DER owners continuously meet their obligations to grid operators. Regulatory groups should perform periodic audits and enforce compliance when needed. Each owner should perform self assessments. (For instance, does the unit follow dispatch instructions within tolerances?)

7. Next Steps
  • In California, the Rule 21 Working Group under the leadership of the CPUC is intended to build consensus among the CPUC, IOUs, generators, and advocates for Rule 21 reforms to meet the technical needs and policy goals of interconnecting distributed generation. Presentation materials and video archives of their April and August 2011 meetings are available on their website.

  • At the federal level, getting the tax code amended would attract investors to CHP much the same way other renewable have used it.

    Last year, a U.S. House bill with bipartisan support was introduced to recognize the resources as renewable. Heat is Power is seeking a 30 percent investment tax credit and/or a 2.1 cents-per-kilowatt hour production tax credit, just like wind, solar and geothermal power generators receive. “We’ve been working to get a significant group of Republicans on board before we introduce it again,” said Kelsey Walker, director of government relations for TAS Energy. ‘What we’re saying is that you might have the best renewable energy in the country because it’s base load,” Walker said, pointing out that the areas in the South and Midwest, thought to be renewable resource-poor, might be prime candidates.

    The majority of the projects would be 10 megawatts or less.

  • Evaluate Integration Issues with Bulk Power System
    • Evaluation of variability impacts on regulation requirements
    • Evaluation of forecasting error impacts on ancillary services requirements and associated costs
    • Redesign of distribution system as a supply source to bulk power system
  • Smart Inverters - Inverters, which convert DC to AC, are required for all PV systems. Inverters are now “software-driven” and have some amazing capabilities to shift their output:
    • They can manipulate Watts (energy) output (as long as they remain within the capabilities of the PV system)
    • More importantly, they can manipulate VArs
    • Can provide capabilities like volt-var control, frequency-watt control, and dynamic grid support as part of low voltage ride through
    • Inverters can sense local conditions, such as voltage and frequency, and respond with autonomous actions These pre-set reactions will improve power system efficiency and delay the need for distribution upgrades and can help avoid outages and system black-outs
    • Inverter manufacturers are already adding these functions for  the European market
    • Expensive communications between utilities and these inverters are not immediately necessary
      • Smaller inverters may never need communications
      • Medium inverters may need to respond to broadcast commands
      • Larger inverters or those on more “sensitive” circuits may need more interactive communications
  • Functions for Inverter-based DER Generation and Storage Systems
    • Immediate commands for inverter-based DER functions:
      • Turn on/off
      •  Limit maximum output
      •  Status and event log information
    •  ”Modes” for pre-established autonomous behaviour:
      • Volt-Var control
      •  Frequency-Watt control
      • Volt-Watt control
      • Dynamic grid support during low voltage ride-through
      • Temperature-var control
      • Pricing signal requests
    • Schedules for hourly, daily, weekly, and/or seasonal actions: – Modes – Commands
    • IEC 61850-90-7 standard (almost) exists for these functions
      • Is already being implemented in Europe
      • Already mapped to DNP3, web services, and (soon) Smart Energy Profile

8. Companies
  1. BPL Global, Pittsburgh PA - Provides software solutions and services to electric utilities enabling an intelligent grid to more efficiently manage demand, integrate distributed energy resources, improve service reliability, and optimize cost and capital productivity. Partners with local utilities, internet service providers, equipment suppliers and financiers to create end-to-end solutions integrating software, communications, hardware and managed services.

    Their software solution allows dynamic, real-time management based on the changing conditions of the distribution network. Utilities can efficiently add and manage a variety of renewable and storage resources on the grid and actively coordinate customer load, generation and storage resources.

  2. Fat Spaniel, San Jose, CA - Provides High Definition Monitoring options for string- and sub-array monitoring, revenue-grade metering, demand monitoring, and environmental monitoring. Fat Spaniel Technologies received $18 million of VC funding in 2008 toward the development of an energy intelligence platform.

  3. GridPoint , Arlington, VA - Their software platform applies information technology to the electric grid to enable utilities to incrementally adopt and customize smart grid solutions including energy efficiency, load management, renewable integration, storage management and electric vehicle management. GridPoint, Inc. received $15 million of VC fudning in 2008 for their management of distributed storage, renewable generation, and load, bringing the firm’s total funding to over $100 million.

  4. Siemens - One of the first firms to explore the concept of VPPs, playing a key role in providing the management system for one of Germany’s pioneering efforts. A VPP project that has been operating since October 2008 aggregates the capacity of nine different hydroelectric plants ranging in size from 150 kilowatts (kW) up to 1.1 megawatts (MW), with a total VPP capacity of 8.6 MW. The VPP framework opened up new power marketing channels for these facilities that would not have been viable if these distributed energy resources (DER) were still operating as stand-alone systems.

    The key technology Siemens is offering to the VPP market is its Decentralized Energy Management System (DEMS), which is designed to enhance both wholesale and distributed generation operations according to pre-defined economic, environmental or energy-related priorities. The company is now engaged in a variety of smart grid projects in the U.S. that could be considered VPPs in Kansas, Texas and Hawaii.

  5. TAS , Houston, TX - Designs and manufactures modular cooling and energy systems for the power generation industry; the district, commercial and industrial process cooling industries; and the industrial sector. Has developed a technology, its organic rankine cycle process that uses lower temperature resources that is being applied in the geothermal power industry. It can operate at 195 degrees, instead of the 900 degrees that are optimal for traditional steam turbines.

9. Links
  1. PIER - Distributed Energy Resources (DER)Systems Integration
  2. CEC - Workshop on Renewable, Localized Generation The California Energy Commission’s Integrated Energy Policy Report Committee (IEPR Committee) conducted a workshop May 9, 2011 on topics related to Governor Brown’s goal of deploying 20,000 megawatts (MW) of renewable energy by 2020, including 12,000 MW of localized energy. See WebEx Recording of the meeting and PDF copies of the presentations
  3. CPUC Distributed Generation Programs
  4. Heat is Power - Collaboration by American innovators and entrepreneurs who are working to develop a roboust market in the United States for zero carbon emission electricity generated from heat wasted by industrial and oil/gas processes. At the federal level, getting the tax code amended would attract investors in much the same way other renewable have used it.

5 comments:

  1. a big thanks for such useful information sharing ........

    ReplyDelete
  2. you have given a good animation but how can i make copy of it and display in my class.... why because am asking, am a teacher. can u assit me? my id varsha_vibha@yahoo.co.in

    ReplyDelete
  3. Varsha,
    Click "View Source" on your web browser and then copy the appropriate html. Here's the code for the first animation

    ReplyDelete
  4. At first I couldn't believe that such as in-depth white paper is available here but thanks so much for sharing this research work.

    ReplyDelete

  5. Thank you for your feedback. We're glad you enjoyed the post. Feel free to share it with others you think may benefit from this information.


    Waste heat recovery power plant Consultants

    ReplyDelete
